Automatic Single Head Miter Saw

About Automatic Single Head Miter Saw

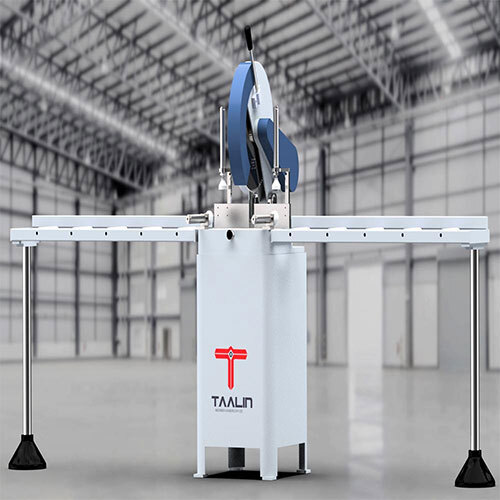

Downstroke Single Head Mitre Saw with 400mm dia., TCT saw blades, vertical and horizontal Pneumatic clamps,automatic blade feed, max. cut length 3000mm.

Features and Functionality:

  Pneumatic actuated automatic saw blade movement.

  Fixed stops on 45, 90 and 135 degrees for making cuts without having to set the angle and the remaining positions can be set using a graduated ruler as reference.

  An additional lock on sliding plate for intermediate degrees fixing.

  Specially designed C.I casted surface plate to avoid slippage while adding sturdiness.

  For security purpose at opening of a protective cover power supply is disconnected.

  Vertical pneumatic clamping kit.

  Adjustable cutting speed and easy to use length stop on measuring conveyor.

  The machine is standard equipped with completed bearing and measuring conveyors 3 meters long each.

  Particular care has been taken over the safety measures, both mechanical and electrical.

  Power supply protects system from voltage overload.

Technical Data:

  Saw Blade diameter 400 mm.

  Voltage 380-415v, 3, 50 Hz.

  Motor Power 2x 1.5 Kw.

  Compressed air 7 bar.

  Servo pack 400 watt
