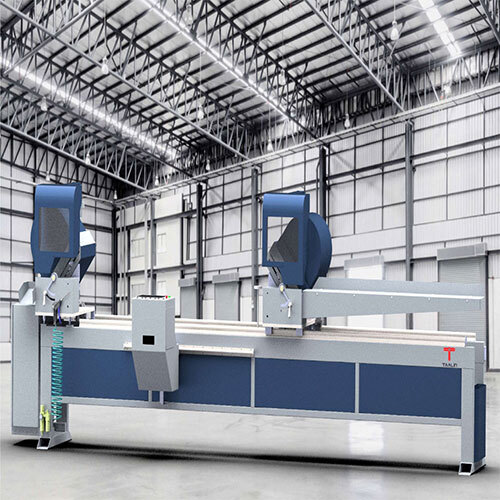

Double Head Aluminum Cutting Machine

Name: Double Head Aluminum Cutting Machine
Brand: TAALIN MACHINERY & ROBOTICS PVT. LTD.
Price: 950000.0 INR
Availability: InStock

Price 950000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Double Head Aluminum Cutting Machine Specification

Product Type
Cutting Machine

Type
Automatic Cutting Machine

Weight (kg)
800 Kilograms (kg)

Control System
PLC Control

BladeSize
450 mm

Cooling System
Other

Drive Type
Pneumatic

Voltage
400 Volt (v)

Dimension (L*W*H)
4640*1580*1320 Millimeter (mm)

Feature
Automatic Feeding, Good Quality, High Efficiency, Environmental Friendly

Color
Blue

Warranty
1 Year

Double Head Aluminum Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
2 Units Per Month

Delivery Time
1-30 Days

Main Domestic Market
All India

About Double Head Aluminum Cutting Machine

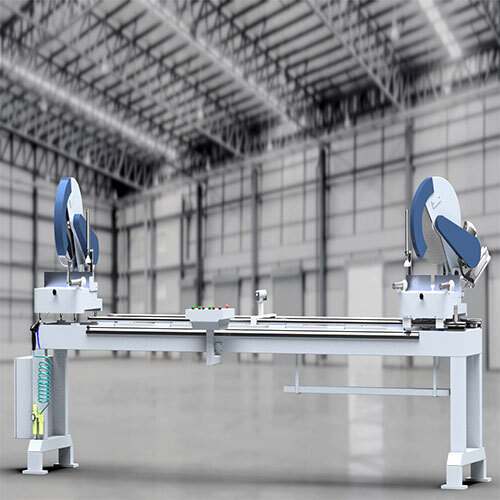

Manual Double Head Mitre Saw (Frontal) with 500mm dia., TCT saw blades, horizontal & vertical Pneumatic clamps, Hydro-pneumatic feed, Profile middle support, Manual head positioning, auto angle change, max. cut length 3800mm.

Features and Functionality:

The SDM-20Manual Double Head Mitre Saw comes with the following features:

Cuts PVC & Aluminium profile at 45-90 automatically and intermediate degrees by means of manual setting.

Profile Cutting Capacity at 90 degrees is 183x250mm in curvature orientation.

Profile Cutting Capacity at 45 degrees Is 183x180mm in curvature orientation.

The left head of the machine is fixed and the right head moves on the basis of bearing mounted on precise LM shafts.

Moving head positioning by means of a pointer and measuring scale, the movement is carried out by hand pulling.

2200 mm right head conveyor support along with manually activated middle support for profile to avoid inaccuracies due to profile sagging.

Hydro-pneumatic feeding with coolant mist spray system for cutting of aluminium sections.

Easily adjustable blade cutting speed.

Ergonomic design for ease of us.

Self-closing protective hoods for work safety.

Easily adjustable Vertical and horizontal pneumatic profile clamping system for the best fixation.

Technical Data:

Saw Blade diameter 500 mm.

Voltage 380-415v, 3, 50 Hz.

Motor Power 2x 2.2 Kw.

Compressed air 7 bar.

Servo motor of 400 watt

Dimensions (length, width, height) 5190 x 1320 x 1620 mm,

Weight 950 Kg.

Optional:

Dust collector

Automatic Precision & Efficiency

Utilizing pneumatic drive and PLC control, this machine delivers consistent, high-quality results while reducing labor costs. Its automatic feeding mechanism accelerates production cycles, making it ideal for busy industrial environments demanding rapid throughput and minimal error rates.

Robust Construction & Sustainability

Manufactured with durability in mind, the Double Head Aluminum Cutting Machine features strong blue-finished housing and environmentally friendly operation. Its considerable dimensions and substantial 800 kg weight reflect a stable and long-lasting structure, suitable for continuous industrial use.

User-Friendly Control System

Equipped with a sophisticated PLC control system, the machine offers streamlined programming and operation. Users benefit from simplified setup, monitoring, and troubleshooting processes, ensuring smooth integration into various cutting workflows within manufacturing or service operations.

FAQs of Double Head Aluminum Cutting Machine:

Q: How does the Double Head Aluminum Cutting Machine improve cutting efficiency in industrial settings?

A: This automatic cutting machine features pneumatic drive and automatic feeding, enabling simultaneous cutting with high-speed blades. The PLC control system streamlines operations, resulting in faster cycle times and reduced manual handling, which significantly boosts overall efficiency.

Q: What types of aluminum profiles can be processed with this machine?

A: The machine is built to handle a broad range of aluminum profiles commonly used in industrial and manufacturing sectors. Its robust design and adjustable blade accommodate varying cross-sections and lengths, making it versatile for general industrial applications.

Q: When is this machine most beneficial to use during industrial manufacturing?

A: Its particularly advantageous during high-volume production runs or when precision and repeatability are critical. Automatic feeding and dual-head operation are especially useful during batch processing of identical or similar aluminum components.

Q: Where can the Double Head Aluminum Cutting Machine be installed?

A: This machine is suitable for installation in factory workshops, manufacturing facilities, or metal fabrication units. Its dimensions and safety features allow for easy integration into well-ventilated and appropriately sized production spaces.

Q: What is the operational process for using this automatic cutting machine?

A: Operators program the desired cut sizes and quantity using the PLC control panel. The pneumatic system activates the cutting heads, and aluminum profiles are automatically fed and cut to specification. The process requires minimal manual intervention beyond initial setup.

Q: Which features contribute to the machines environmental friendliness?

A: With its energy-efficient pneumatic operation and automatic feeding, the machine reduces waste and energy consumption. Its robust construction also contributes to a longer lifespan, supporting sustainable manufacturing practices.

Q: What are the benefits of having a 1-year warranty as a manufacturer or supplier?

A: A 1-year warranty provides assurance for customers regarding product reliability and service. Manufacturers and suppliers can offer prompt support and solutions for potential issues during the initial operational period, fostering trust and customer satisfaction.
