Facade Cnc Double Head Aluminum Cutting Machine

About Facade Cnc Double Head Aluminum Cutting Machine

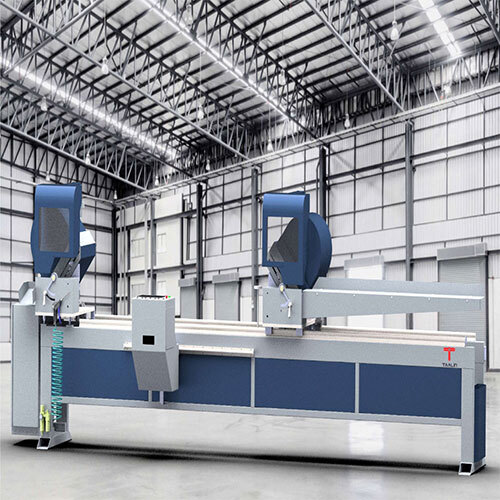

Digital Double Head Mitre Saw (Frontal) with 500mm dia., TCT saw blades, horizontal & vertical Pneumatic clamps, Hydro-pneumatic feed, Profile middle support,High precision head positioning by servo motor, auto angle change, max. cut length 3800mm.Suitable for cutting of faade sections with width upto 350mm in 60mm height.

Features and Functionality:

  Cuts PVC & Aluminium profile at 45-90 automatically and intermediate degrees by means of manual setting.

  Profile Cutting Capacity at 90 degrees is 130x400mm in curvature orientation.

  Profile Cutting Capacity at 45 degrees Is 112x400mm in curvature orientation.

  The left head of the machine is fixed and the right head moves on the basis of bearing mounted on precise LM shafts.

  precision positioning by means of planetary gear coupledwith servo motor with the help of rack & pinion driven transition system.

  Ethernet enabled touch HMI with PLC for various operating modes.

  Software assisted cutting operations like minimum cut and extended cut for a range between 450mm to 6000mm.

  Hydro-pneumatic feeding with coolant mist spray system for cutting of aluminium sections.

  2200 mm right head conveyor support along with automatically activated middle support for profile to avoid inaccuracies due to profile sagging.

  The machine is best suited for faade profiles having larger width as the blade comes out up to 400 mm.

  Easily adjustable blade cutting speed.

  Ergonomic design for ease of us.

  Self-closing protective hoods for work safety.

  Easily adjustable Vertical and horizontal pneumatic profile clamping system for the best fixation.

Technical Data:

  Saw Blade diameter 500 mm.

  Voltage 380-415v, 3, 50 Hz.

  Motor Power 2x 2.2 Kw.

  Compressed air 7 bar.

  Servo pack 400 watt

  Dimensions (length, width, height) 5190 x 1320 x 1620 mm,

  Weight 950 Kg.

Optional:

  Windows IPC with Inbuilt bar optimisation.

  Data transfer of cutting list & bar code label printing.

  Automatic Pneumatic End support for profiles during small size cutting.

  Dust collector

  Longer body frames for 5meter/6 meter cutting without software assistant
