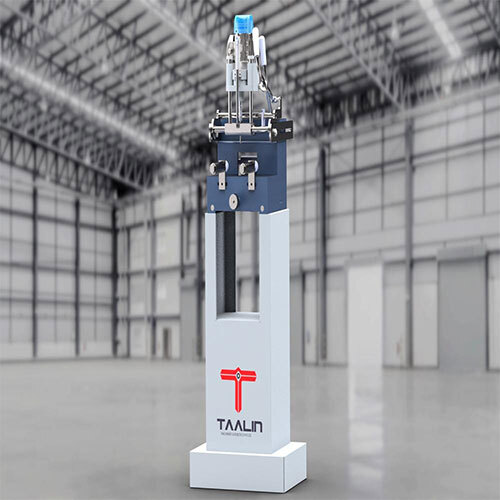

Heavy Duty upvc water Drain slot machine 3 spindle

About Heavy Duty upvc water Drain slot machine 3 spindle

The Machine comes with pneumatic clamping Three lever operated heads Material stops Automatic individual motor activation Three low maintenance, high speed brush motors provide 20,000rpm, 6mm diameter collets as standard,complete with slotting bits.

Features and Functionality:

  Three routing units, one oblique unit tiltable up to 60 degrees, one horizontal unit and one vertical one

  Wide adjustment range suitable for internally or externally glazed windows.

  All heads have adjustable depth and stroke length settings.

  Two handed starts for safety whilst operating.

  Built-in stops allow various positions to be pre-set.

  Three pneumatic operated heads permit cutting on three sides of the profile in one machine operation.

  20,000 rpm high speed motors cutting finesse.

  The routing units are independent, can be used together and separately from each other.

  Automatic working cycle with adjustable operation speed.

  System for automatic drilling for symmetric slots with horizontal vertical pneumatic clamping.

Technical Data:

  Compressed Air 5-7 Bar/100psi

  Air Consumption 30 Litre. Per cycle

  Dimensions (length, depth, height) 450 x 700 x 1550mm

  Weight 135 KG
