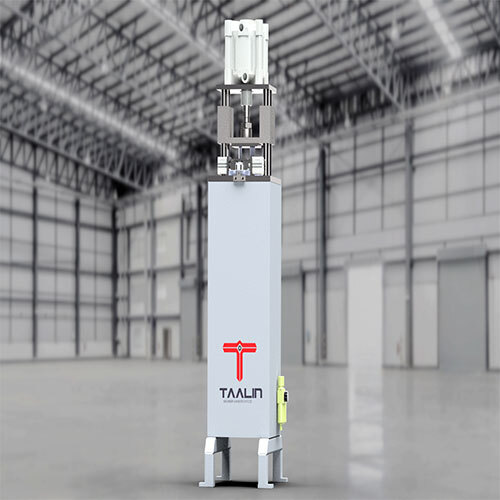

UNIVERSAL AUTOMATIC SINGLE POST CLEAT PUNCHING MACHINE FOR ALUMINIUM

About UNIVERSAL AUTOMATIC SINGLE POST CLEAT PUNCHING MACHINE FOR ALUMINIUM

CP- 1TA Universal Single Post Automatic Cleat Punching Machine for punching of Aluminium corners, Padel operated single Punch tool for Frame/Sash profile for specific series with the option to accommodate multiple sections by adding clips to the die.

Aluminium Universal Single Cleat Punching Machine comes with the following features:

  Specialised Guides to sustain work load during punching of aluminium profile corners.

  Any 1 Punches can be selected from the available series of Taalin Library however if required sleeves can be given on demand to accommodate profiles of relative series profiles.

  High-Capacity Pneumatic Cylinder can generate a punching force of 400 Kg, the machine is operated by foot padel with minimalistic settings.

Technical Data:

  Dimensions in mm (length, width, height) 200 x200x1700

  Weight 50KG
