Manual End Milling Machine for upvc

Product Description

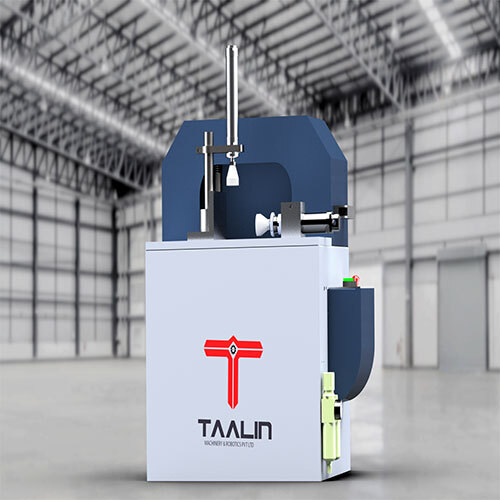

ME-4M MANUAL END MILLING MACHINE: The Machine comes with pneumatic clamping, manual feeding, cutting depth adjustment and angular milling option. Its spindle accommodates milling cutter with ID as 32 mm and Maximum OD upto 125mm.

Features and Functionality:

  The milling operation is carried out manually with the help of a handle.

  The operating range of cutter is 180mm allowing up to 120mm width profile to be operated as per requirement. It can accommodate profile height up to 100mm Includes a swift and easily changeable blade holding system which is used in this machine so that many kinds of profiles can be operated.

  An adjustment system to make settings ready for the profiles at once.

  Horizontal and vertical Pneumatic clamping system on Demand.

  A special operation table preventing the profile to slip or get misplaced.

  Includes blade storing compartment.

  All precautions taken against work accidents.

Technical Data:

  Milling cutter maximum diameter125 mm dia.

  Milling cutter internal diameter 32mm

  Maximum profile width 120mm

  Maximum profile height 100mm

  Mains voltage 3, 400-440v, 50Hz

  Milling spindle 2800 rpm

  Power output .75 kw

  Compressed air supply 6 bar minimum

  Air consumption 25 litre per cycle

  Dimensions (Length, width, height) 1040x960x1060 mm.

  Weight 65 Kg

OPTIONAL:

  Spray mist Unit for Aluminium profiles.

  Additional clamp for heavier sections.
