Upvc Lock Holes Machine Low Cost

About Upvc Lock Holes Machine Low Cost

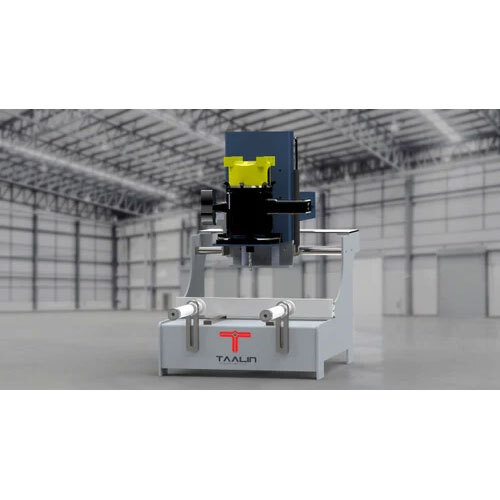

Copy Router & Triple Drill, comes with high speed spindle, 8mm router, pneumatic clamping, copier template, copier pin, span limiting stoppers.

Features and Functionality:

  Compact and Efficient design not only saves electricity but also takes less space in workshop without compromising the operational ability.

  Upper Copy router head fitted with Lateral stops left and right, depth stopper and copier pin & copy template.

  Reliable 3 phase triple Drill Motor with high efficiency gearbox, easy to change triple drill bit.

  Two hand safety control for all motors.

   Interlocking clamp activation and pneumatic interlocking to avoid unclamping during power outages for operators safety.

  Comes with wide operating range of 250X120 mm and working height of 140mm with 80mm length bits.

Technical Data:

  Router Collet 8mm

  Spindle RPM: 14200

  Motor power: .55 (Kw) X2

  Triple Drills Diameter 10-12-10mm

  Voltage 380-415 v

  Compressed Air 7 Bar/100psi

  Air Consumption 30L/M

  Dimensions (length, width, height) 1000x700x1500mm

  Weight 220KG
