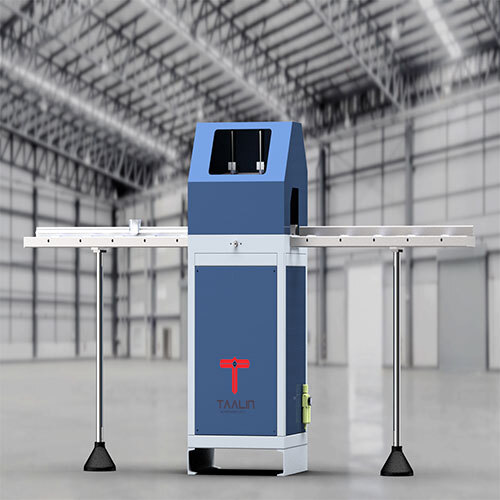

AUTOSWING SINGLE HEAD FRONTAL CUTTING MACHINE/500MM

About AUTOSWING SINGLE HEAD FRONTAL CUTTING MACHINE/500MM

Frontal Single Head Mitre Saw with 420mm dia., TCT saw blades, vertical and horizontal Pneumatic clamps, Auto angle change of 40/90/135 degree max. cut length 3000mm.

Features and Functionality:

The SSM-17 Upstroke Single Head Mitre Saw comes with the following features:

  Cooling system for cutting aluminium profiles.

  Cutting range 45 to 135.

  Fixed stops on 45, 90 and  135 degrees for making cuts without having to set the angle and the remaining positions can be set using a graduated rule as reference.

  An additional lock on sliding plate for intermediate degrees fixing.

  Specially designed C.I casted surface plate to avoid slippage while adding sturdiness.

  Diameter of a diamond saw blade is 420 mm.

  For security purpose at opening of a protective cover power supply is disconnected.

  Vertical pneumatic clamping kit.

  Adjustable cutting speed.

  The machine is standard equipped with completed bearing and measuring conveyors (3 meters long each).

  Particular care has been taken over the safety measures, both mechanical and electrical.

  Power supply protects system from voltage overload.

Technical Data:

  Saw Blade diameter 420 mm.

  Voltage 380-415v, 3, 50 Hz.

  Motor Power 2x 1.5 Kw.

  Compressed air 7 bar.

  Servo pack 400 watt

  Dimensions (length, width, height) 3760 x 640 x 1570 mm,

  Weight 600 Kg.

Optional:

  Digital conveyor up to 3500 mm

  Dust collector
