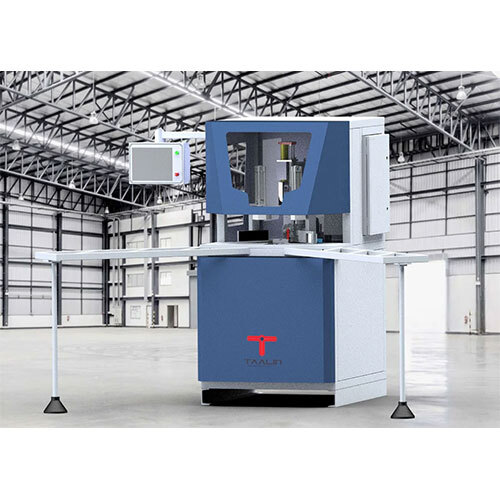

Upvc Cnc Corner Cleaning Machine 7 Tool

About Upvc Cnc Corner Cleaning Machine 7 Tool

CCM 7T CNC corner Cleaning Machinefor Upvc frames having two 2.0 mm wide grooving knives, milling saw blade, one router heads with cuttersfor gasket place cleaning,upper and lower tool stations for internal cleaning, & track cleaner for sliding frames, profile centring device, automatic profile recognition system, pneumatic clamping, up to1000joint type storage locations, closed loop servo drivenCNC control system, support table forbig size window/door frames.

Features and Functionality:

The CCM 7TCNCCorner Cleaning Machine comes with the following features:

  Easy to use CNC Touch Screen (CNC controller) Ideally suited for factory environments.

  Cleans all types of Corners of all kind of frames such as sash, frame& sliding profiles, be it with or without gasket.

  External bevels are finished using angled knives suited to all kind of profile system providing a smooth clean finish.

  Pre-loaded tool stations available for special knives to suit wood grain and decorative/laminated profiles (colour profile).

  Two-Axis high speed AbsoluteServo driven system provides accurate positioning and reduces cycle time since machine homing is never required.

  Gasket place cleaning pneumatic Router motors for greater reliability in production.

  Self-centring clamping system, spring loaded groove knives and floating bevel knives to cope with greater tolerances in profile.

  Ethernet protocolforhigh-speed communication between servo system & CNC controllers,minimises wirings whilereducing cycle times.

  The machine CNC controller comes with enhance features of Remote Access which enables the OEM to develops profiles programs& carry out troubleshooting to reduce machine down time.

  35mm-135mm height profiles could be cleaning in this machine.
