Upvc Window Corner Cleaning Machine

Product Description

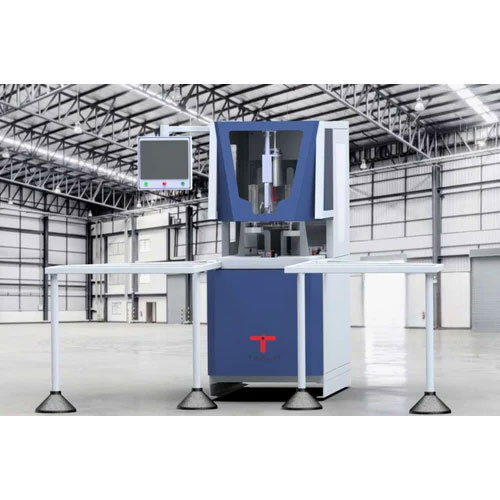

CCM 5T CNC Corner Cleaner: Machines comes with 2,0mm axis mounted groove knives (2-Nos) for surface grooving, (1-Nos) TCT Milling Blade for back side cleaning, (1-Nos) track cleaning tool for sliding frames, (1-Nos) milling bit to clean the gasket place. Tool control by easy programming in tabular form for each profile which are saved to internal memory.Frame support table for uniform cleaning of all corners.

Features and benefits:

  Automatically grooves both top and bottom by means of cleaning knifes (2mm or .2mm).

  Both grooving knifes are programable as they are mounted on the axis which allows precise cleaning by means of programming in decimal scale.

  The track cleaner tools cleans both side tracks of sliding frames.

  Gasket cleaning bit cleans gasket place of all profiles.

  Profile faces and mills outsideedge in one operating cycle.

  Internal cleaning options for both sliding frame

  Wide range of outside shaped profiles can be cleaned due to CNC controlledmilling blade.

  Up to 40 different program slots available for multiple series of profiles.

  Profile cleaning Programs are directly created on the machine touch screen in tabular form with ease.

  Digital display allows for 'tweaking' of the programs for optimum finish. Programs can be tweaked by qualified machine operators.

  Full interpolation enables decorative shapes to be milled.

  Milling blade provides a superior finish due to more teeth and higherperiphery speed when compared to conventional cutter sets.

  Total flexibility with full operation or option to isolate either or both grooveknives or milling blade

  Cleaning cycle activated automatically asframe joint is inserted, centring device atomically pulls the profiles corners against the fences so that cleaning position remains accurate and precise.

  25mm-145 mm range height profiles could be cleaning in this machine.
