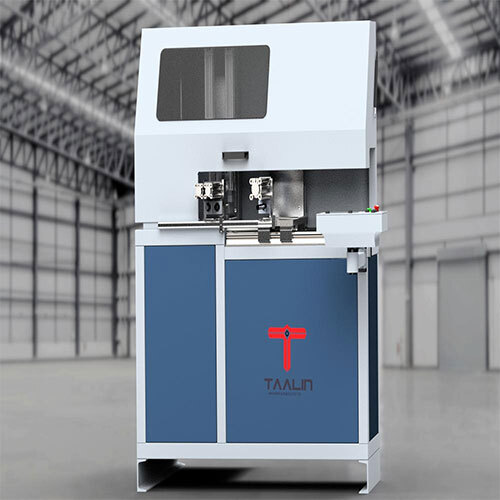

DIGITAL VERTICAL V CUT SAW FOR ALUMINIUM PROFILE

About DIGITAL VERTICAL V CUT SAW FOR ALUMINIUM PROFILE

SV 100DDigital Vertical V Cutting Saw comes with: 2x HSS saw blades, Pneumatic clamping, Depthsetting Hand wheel, simultaneous dual cutting, provision to mount fixtures as per profile for all kind of applications, one side supports 2.5-meter Digital Conveyor and other side conveyor stand for full length profile support.

Features and Benefits:

  The machine is standard equipped with completed bearing and measuring conveyors of 2500 mm which is operated digitally by PLC Touch screen.

  The servo-controlled positioning with Planetary gears provides precise cutting with higher positional accuracy.

  Suitable for fast cutting of 45-degreenotches in profilesfor V shapes.

  Two fixed, opposed blade motors on the mobile carriage set at 45 to the workpiece support surface in V configuration.

  2 cutting saw blades HSS (High Speed Steel)automatically moves vertically downward to provide the required V shape.

  2 sets of Vertical pneumatic clamping systemwith specially designed flexible clamp pads to avoid inaccuracy due to slippage.

  Standard fixture mounting slots are given to fix different kind of fixtures for different applications.

  Adjustable cutting speed with regulator on control panel.

  Care has been taken over the safety measures, both mechanical and electrical.

  Power supply protects system from voltage overload.

Technical Data:

  Saw blade diameter 300mmX2

  Shaft diameter 32mm Voltage 380-415 v, 3, 6 amps 2 Kw of Rated Power

  Compressed Air 7 Bar/100psi

  Air Consumption 4 Ltr. Per cycle

  Dimensions (length, depth, height) 540 x 1000 x 1150mm

  Weight 110KG

Options:

  profile support: 3 m or 6 m
