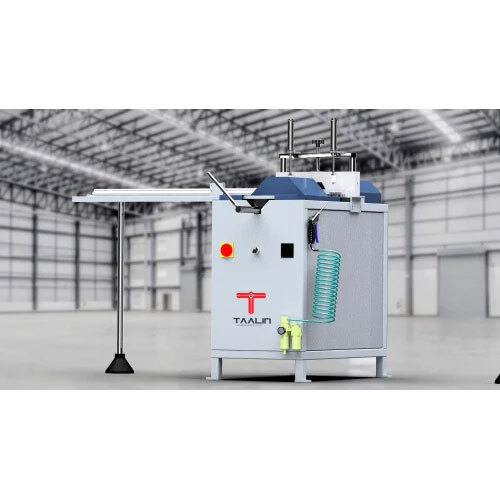

Automatic V Cutting Saw For Upvc Profile

About Automatic V Cutting Saw For Upvc Profile

SVC 2A8: Automatic V notch cutting saw comes with: 2x HSS saw blades, Pneumatic clamping, Adjustable depth setting, both side supports 1.5-meter measuring length stop & support.

Features and Benefits:

         The machine is standard equipped with complete bearing and measuring conveyors (1.5+1.5 meters long each)

         Suitable for fast cutting in 45-degree forV notching only.

         250mm saw blade allows higher depth of cutting for big size profiles.

         Two fixed, opposed blade motors on the mobile carriage set at 45 in V configuration to the workpiece support surface.

         2 cutting saw blades TCT (High Speed Steel) for simultaneous cutting.

         Horizontal pneumatic clamping system

         Care has been taken over the safety measures, both mechanical and electrical.

         Power supply protects system from voltage overload.

Technical Data:

  Saw blade diameter 200mm

  Shaft diameter 30mm Voltage 380-415 v, 3, 6 amps 1.1 Kw of Rated Power

  Compressed Air 7 Bar/100psi

  Air Consumption 4 Ltr. Per cycle

  Dimensions (length, depth, height) 540 x 1000 x 1150mm

  Weight 110KG

Options:

  profile support: 2.5 m each
